4-Bolt Aluminum Dome

SKU:
P-170515

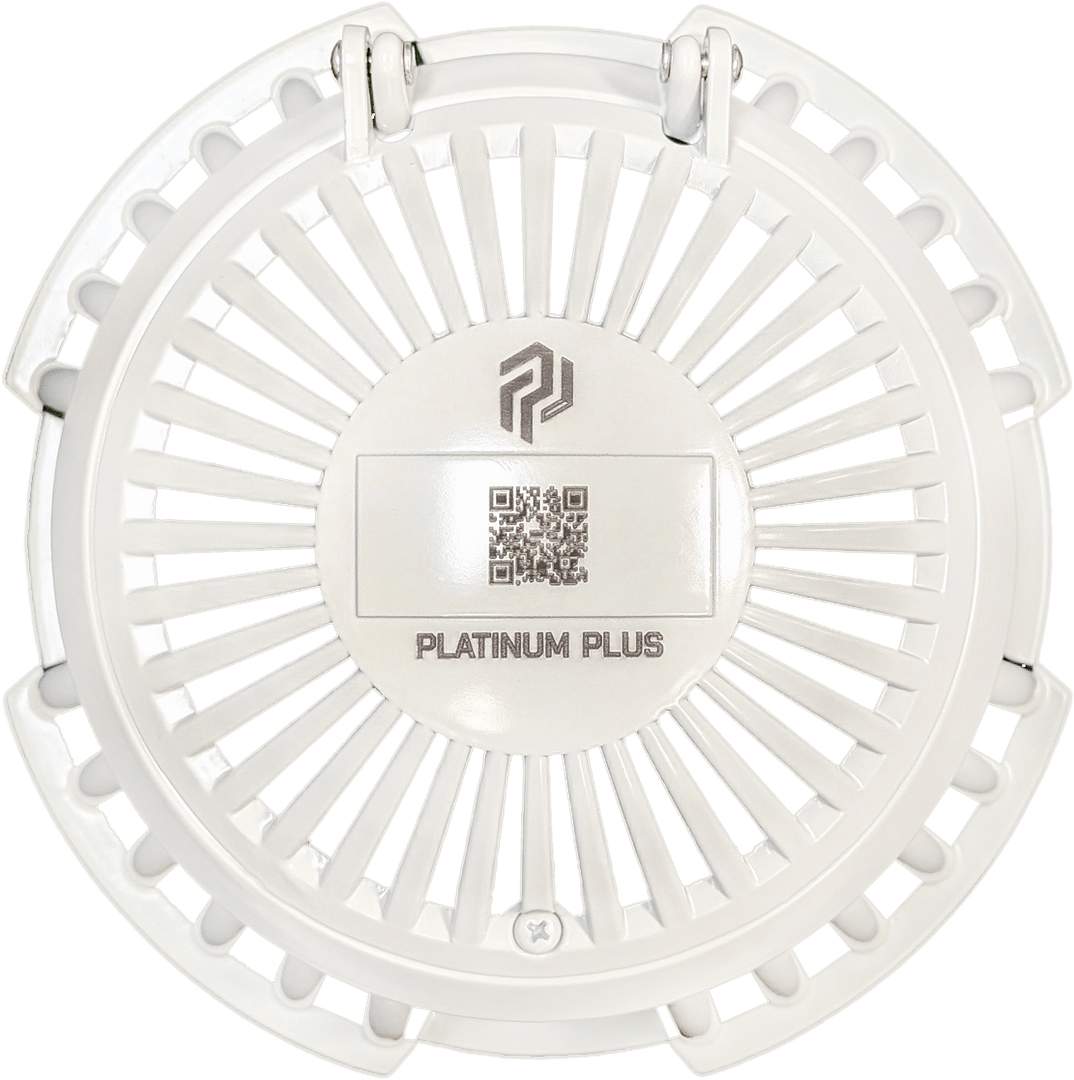

4-Bolt Cast Aluminum Powder Coated Dome with Flip-Top, QR Lasered Removable Lid

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Required
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Required
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Required
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Required
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Required

Features & Benefits

  • Heavy duty die-cast powder coated Aluminum dome, crafted for maximum corrosion resistance
  • Compatible with all 4-Bolt Aluminum and Copper drains
  • Includes a QR code laser marked on the dome lid for quick registration & maintenance history access
  • Features a flip-top lid that can be remove entirely by unscrewing the hinge screws which gives a total of 6.5" opening
  • Features 40 weir slots for maximum water flow
  • Easy maintenance facilitated by a single Phillips screw
  • Vandal-resistant yet contractor-friendly for ease of use

Application

Dome strainers in roof drains prevent debris, such as leaves and twigs, from clogging the drainage system while allowing water to flow freely. They help maintain optimal drainage, protect plumbing from damage, and enhance safety by reducing the risk of standing water on the roof surface. Additionally, the removable lid facilitates easy maintenance, allowing for quick cleaning and inspection of the strainer without dismantling the entire system.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-170515 -1 2 lb (0.91 kg)
SKU: P-170515
Size:
-
-
Package QTY:
1
Weight:
2 lb (0.91 kg)

Accessories

This product has no related accessories.
