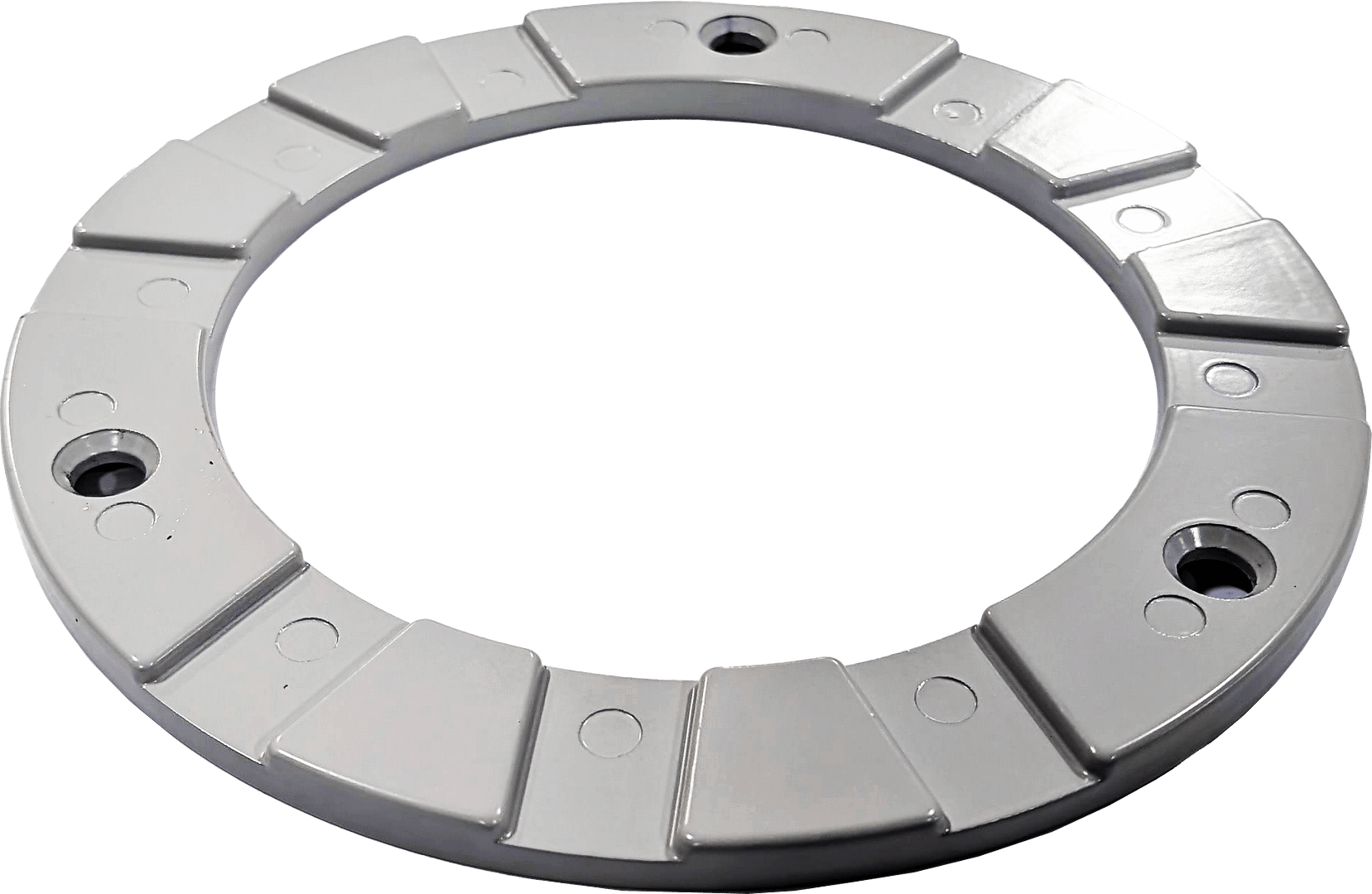

3-Bolt Aluminum Clamping Ring

SKU:
P-90146

3-Bolt Cast Aluminum Powder Coated Clamping Ring

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Included
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Included
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Included
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Included
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Included

Features & Benefits

  • Heavy duty die-cast powder coated Aluminum construction for durability
  • Features 9 drainage channels to allow for full drainage
  • Flange designed for an optimum seal with roof flashing
  • Fits all sizes of Platinum Copper and Aluminum drains
  • Reversible design allows for elevation drainage options

Documents

Application

Clamping rings in roof drains serve to secure the drain assembly firmly to the roof structure, ensuring a watertight seal. They help maintain the stability of the drain by preventing movement caused by thermal expansion, contraction, or environmental factors. By effectively compressing the roofing membrane against the drain, clamping rings minimize the risk of leaks and water infiltration. Additionally, they facilitate easy installation and maintenance of the roof drain system, contributing to the overall durability and performance of the roofing system.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-90146 -1 1.28 lb (0.58 kg)
SKU: P-90146
Size:
-
-
Package QTY:
1
Weight:
1.28 lb (0.58 kg)

Accessories

This product has no related accessories.
