Under Deck Clamps

SKU:
(Select a size)
P-X13012
P-X13013
P-X13014

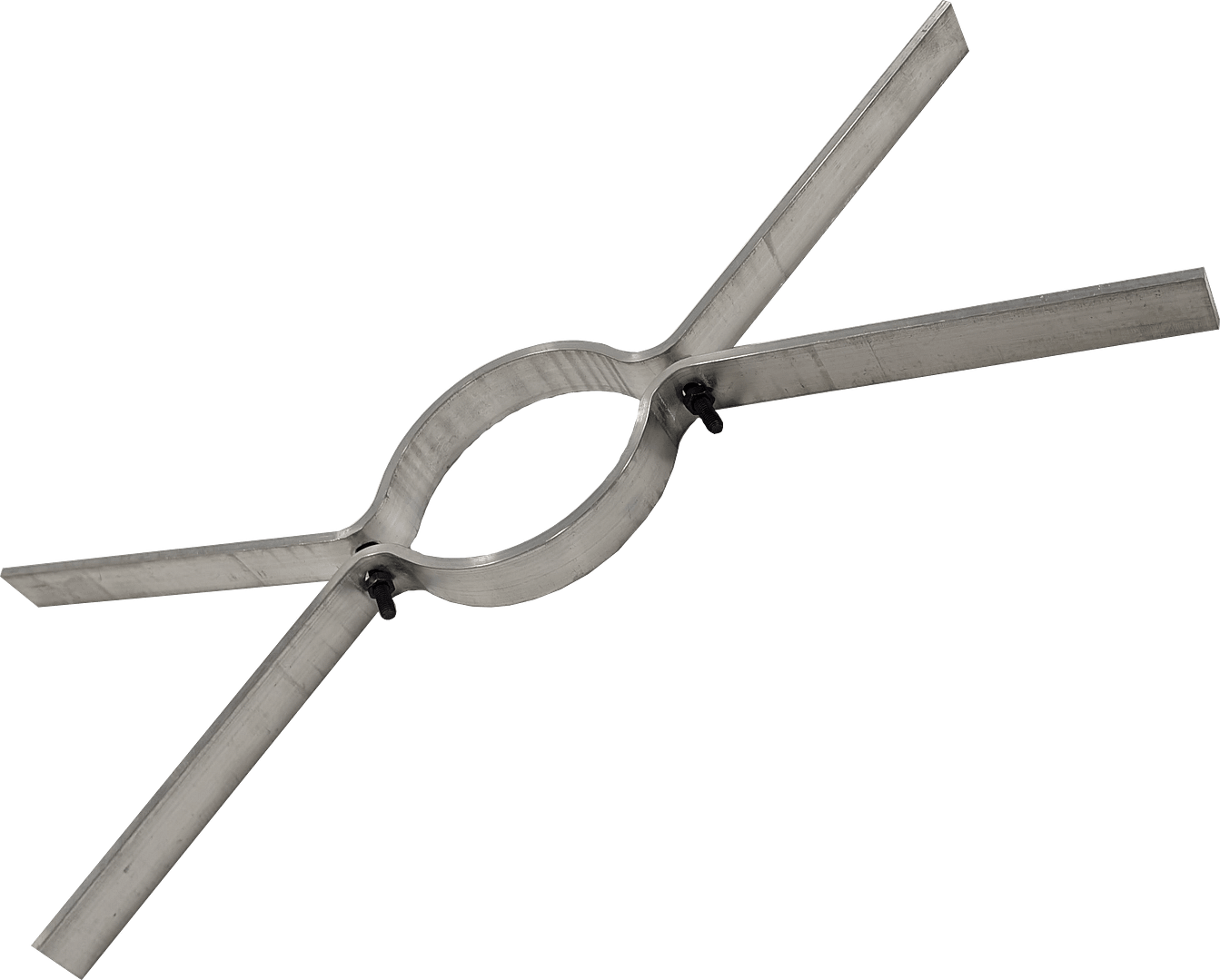

X Shaped Aluminum Under Deck Clamp Sets for New Construction Drains

3" Aluminum Under Deck Clamp Set

4" Aluminum Under Deck Clamp Set

6" Aluminum Under Deck Clamp Set

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Required
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Required
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Required
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Required
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Required

Features & Benefits

  • Constructed from premium heavy-gauge Aluminum measuring 1" wide, 18" long, and 4.7mm thick for enhanced durability
  • Specifically designed for compatibility with 3", 4", or 6" new construction drains
  • Tested to withstand over 300 lb. pull force, ensuring reliable performance
  • Each set includes 2 Allen key bolts and nuts for secure installation
  • Packaged in sets of 5 per box, available for 3", 4", or 6" configurations

Application

Under-deck clamps are essential for ensuring a secure and durable installation of roof drains, particularly in all installations except poured-in-place setups. Properly securing the roof drains with under-deck clamps is crucial; without them, the drains may shift due to snow and rain loads, as well as the natural expansion and contraction of materials. This movement can lead to flexing and eventual failure of the roofing membranes.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-X13012 3"5 0.69 lb (0.31 kg)
P-X13013 4"5 0.75 lb (0.34 kg)
P-X13014 6"5 0.79 lb (0.36 kg)
SKU: P-X13012
Size:
3"
-
Package QTY:
5
Weight:
0.69 lb (0.31 kg)
SKU: P-X13013
Size:
4"
-
Package QTY:
5
Weight:
0.75 lb (0.34 kg)
SKU: P-X13014
Size:
6"
-
Package QTY:
5
Weight:
0.79 lb (0.36 kg)
