Insulated One-Way Breather

SKU:
P-13008W

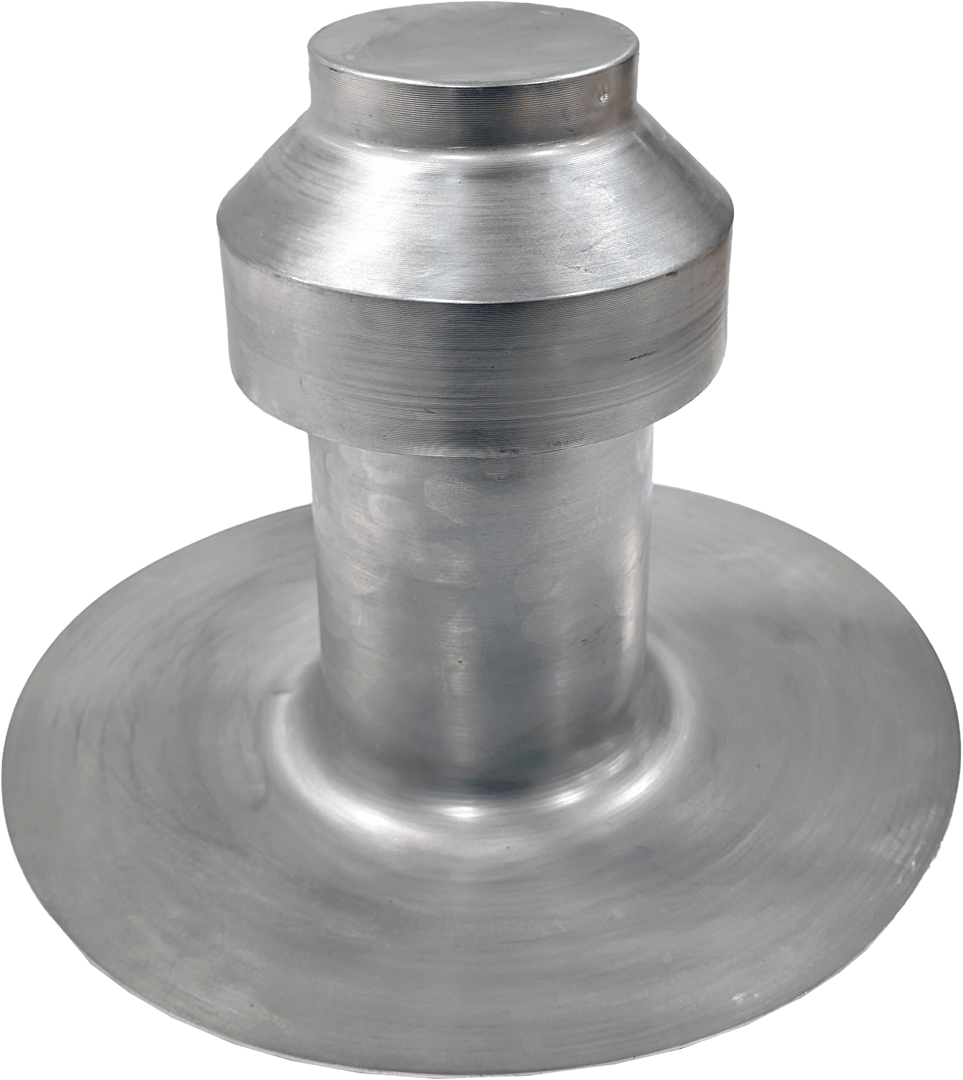

12" Spun Aluminum Vented /Insulated One Way Breather With Integrated Bug Screen

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Required
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Required
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Required
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Required
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Required

Features & Benefits

  • Two piece Premium gauge Spun Aluminum with a 0.05" (1.5mm) material thickness
  • The secured vandal-proof cap prevents rain or snow entry
  • One-way roof vent with an internal flexible one-way diaphragm minimizing moisture and trapping air within the roofing system to extend the roof's lifespan
  • Vented 7" wide cap with integral bug screen
  • 12" tall vent height featuring a 15" wide deck flange
  • 3/4" thickness Polyurethane foam insulated walls

Application

One-way breathers allow moisture and trapped air to escape from the roofing system while preventing water and debris from entering. This helps reduce condensation and pressure buildup, prolonging the roof’s lifespan by preventing damage from moisture. Placement depends on the breather’s venting capacity. For a 3.5″ (89 mm) throat opening, it is recommended to install one breather for every 150 square feet (14 square meters) of roof area.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-13008W 12"5 2 lb (0.91 kg)
SKU: P-13008W
Size:
12"
-
Package QTY:
5
Weight:
2 lb (0.91 kg)

Accessories

This product has no related accessories.
