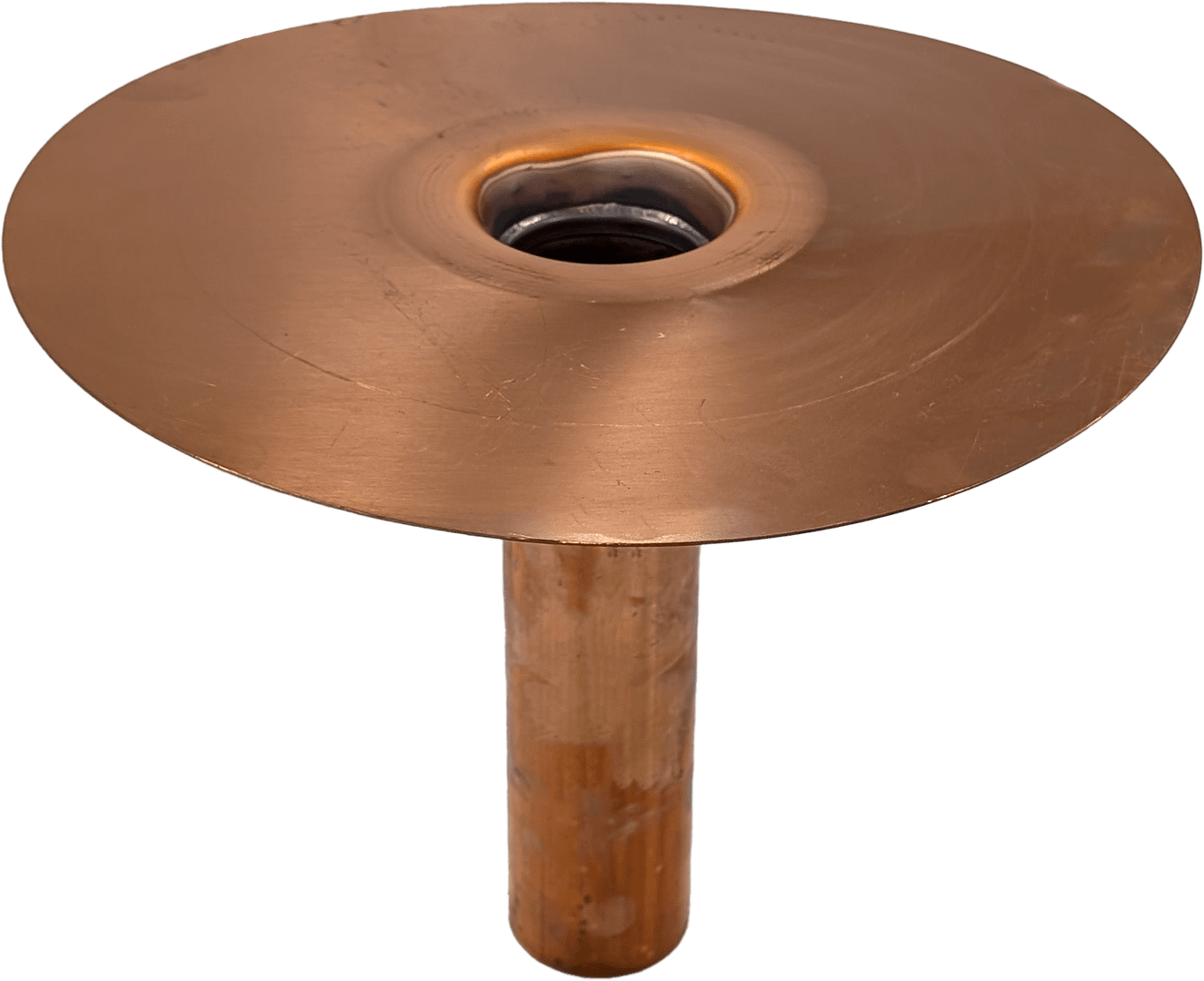

Copper Temporary Drains, 18″ Stem

SKU:
(Select a size)
P-80312QC-18
P-80330QC-18

Copper Temporary Drains

2 ¾" Copper Temporary Drain Deck only with Extended 18" Stem Length

3 ¾" Copper Temporary Drain Deck only with Extended 18" Stem Length

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Required
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Required
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Required
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Required
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Required

Features & Benefits

  • Two-piece construction with argon arc welded stem and deck
  • Available with 2 ¾" and 3 ¾" drain stems in lengths of 12" and 18"
  • Features a 14.76" wide drain deck
  • Designed to fit 3" and 4" drain inserts
  • Constructed with a 0.75mm material thickness for the Copper deck
  • Constructed with a 1.2mm material thickness for the Copper stem
  • Flat deck style allows for ease of installation
  • Ideal for reusable temporary drains in various applications.

Application

Temporary drains are used in roofing applications to manage water runoff during construction or maintenance. They help prevent water accumulation on the roof, reducing the risk of leaks, structural damage, and safety hazards. Temporary drains are particularly useful in areas where permanent drainage systems are not yet installed or when immediate water removal is necessary. Their easy installation and removal make them ideal for protecting roofing materials and ensuring a safe working environment.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-80312QC-18 3"5 4.27 lb (1.94 kg)
P-80330QC-18 4"5 4.97 lb (2.25 kg)
SKU: P-80312QC-18
Size:
3"
-
Package QTY:
5
Weight:
4.27 lb (1.94 kg)
SKU: P-80330QC-18
Size:
4"
-
Package QTY:
5
Weight:
4.97 lb (2.25 kg)

Accessories

This product has no related accessories.
