Aluminum Flow Control Restrictor

SKU:
P-10181

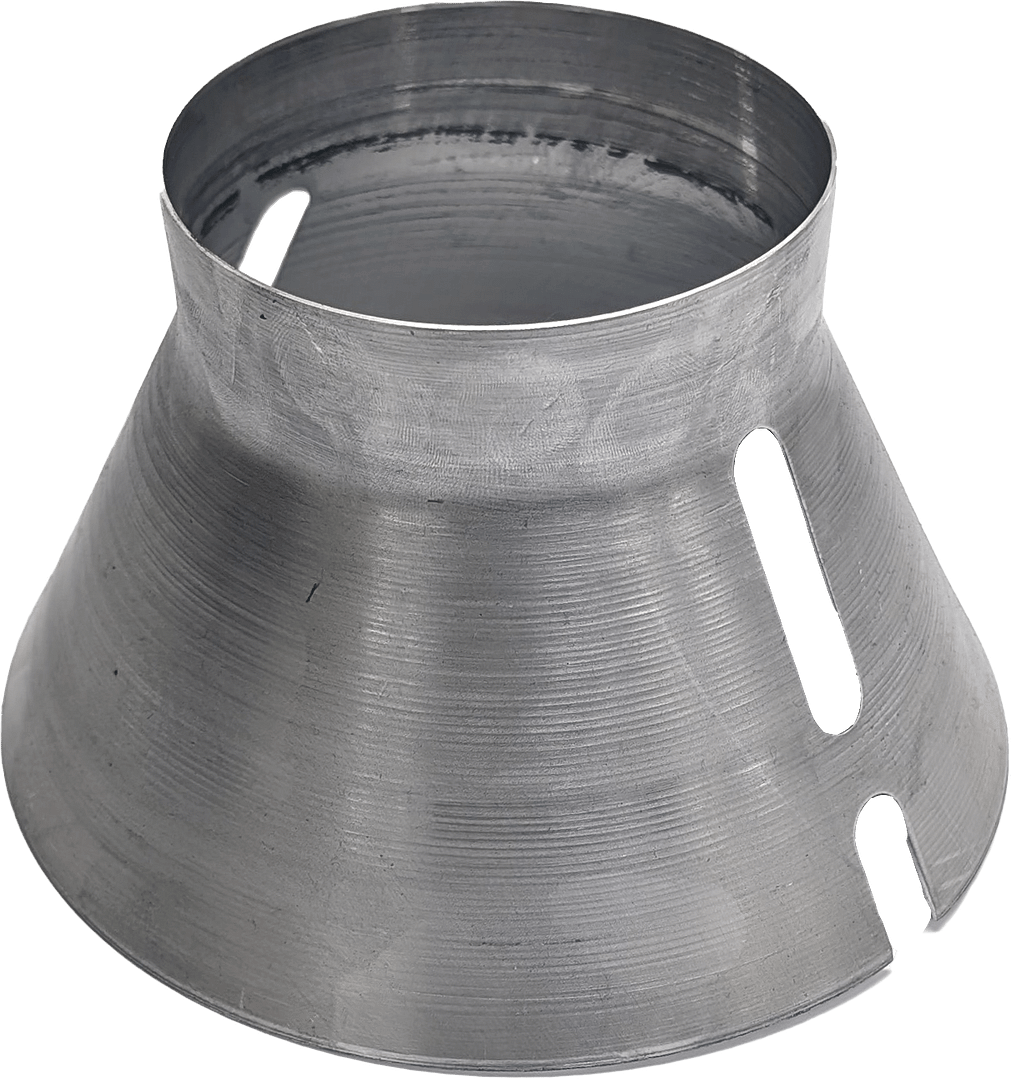

Spun Aluminum Flow Control Restrictor

Have questions? Feel free to contact us.

Expand Chart

I.D. of the Existing Drain Leader Platinum Drain Size (O.D.) Fits Into Pipe (I.D.) Large End of Seal (Max. Expansion) Note
2″
1 ¾”
2″
NA
Coupler Required
3″
2 ¾”
2.87″ – 3.25″
3.34″
3″ Drain Seal Required
4″
3 ¾”
3.87″ – 4.12″
4.13″
4″ Drain Seal Required
5″
4 ¾”
4.87″ – 5.25″
5.39″
5″ Drain Seal Required
6″
5 ¾”
5.87″ – 6.12″
6.22″
6″ Drain Seal Required

Features & Benefits

  • Simple and easy to install for quick setup
  • Fits all styles and sizes of Platinum drains
  • Drainage flutes are located on both sides with a 4" diameter top opening activated when the water head exceeds the 4.41" flow control height
  • Side drainage flutes are designed to restrict water flow, ensuring compliance with municipal regulations
  • Constructed from heavy-gauge Aluminum alloy (0.07") for enhanced durability
  • Tested and certified by QAI Laboratories for reliable performance

Application

Flow control restrictors in roof drains regulate the rate of water drainage, preventing overflow and managing storm water runoff. They help maintain a consistent water flow, which is essential for avoiding excessive ponding on roofs. By controlling drainage rates, flow restrictors minimize the risk of water damage and structural issues, ensuring the roof’s integrity over time.

Packaging Info

SKUSIZEPACKAGE QTY.DIMENSIONAL WEIGHT LBS. (kg)
P-10181 -1 0.41 lb (0.19 kg)
SKU: P-10181
Size:
-
-
Package QTY:
1
Weight:
0.41 lb (0.19 kg)

Accessories

This product has no related accessories.
